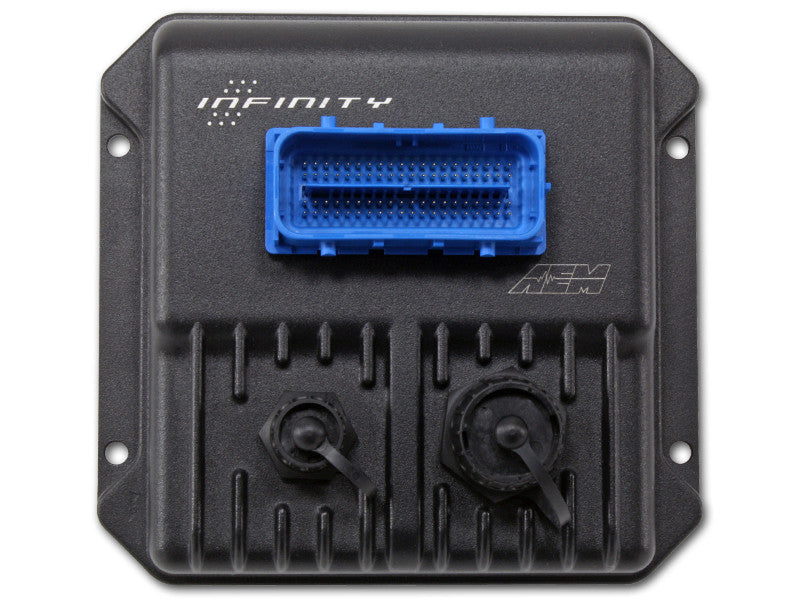

AEM INFINITY 506 EMS

$10,000,000.00

The Infinity Series 5 include all of the advanced features found in the Infinity Series 7 including the latest generation 200 MHz automotive processor that can process 400 MIPS. Airflow model-based (VE) tuning eliminates lookup of many correction tables needed in previous generation ECUs. Flex-fuel and multi-fuel capability, on-board wideband air/fuel control, map switching and knock control are included. Engine protection strategies include coolant temp, oil temp, AFR vs. MAP, intake air temp, knock and fuel pressure. Programmable drive-by-wire, variable cam timing, boost control, nitrous control and traction control are included. Data logging up to 64 GB via a removable USB drive is standard with logging rates up to 1 KHz per channel. The Infinity Series 5 is able to communicate with 3rd party dashes and loggers and is AEMnet enabled. All maps can be password protected. Its sealed enclosure and IP67-rated communications ports are suitable for engine bay mounting.

AEM offers a universal flying lead harness and a Plug & Pin Kit for the Infinity Series 5. Plug & Play adapter harnesses are available for select 4- and 6-cylinder applications. We also make full plug and play engine harnesses to control any JZ series engine.

  • Airflow model based (VE) tuning
  • ECU Set Up Wizard simplifies start up
  • Flex Fuel compatible
  • Multi fuel capable
  • Drive by wire
  • Variable valve control
  • Multiple boost control strategies
  • Nitrous control
  • Map switching (on-the-fly)
  • Internal wideband UEGO air/fuel controller
  • Dual knock sensing circuits
  • Data logging up to 64 GB
  • Outputs to 3rd party dashes and loggers (via CAN bus only)
  • Industry leading transfer speed
  • Integrated engine protection strategies
  • Sealed enclosure and IP67-rated comms ports
  • Rolling antilag
  • 2JZGTE VVTi fly by wire support
  • VVTi support
  • DISCONTINUED
