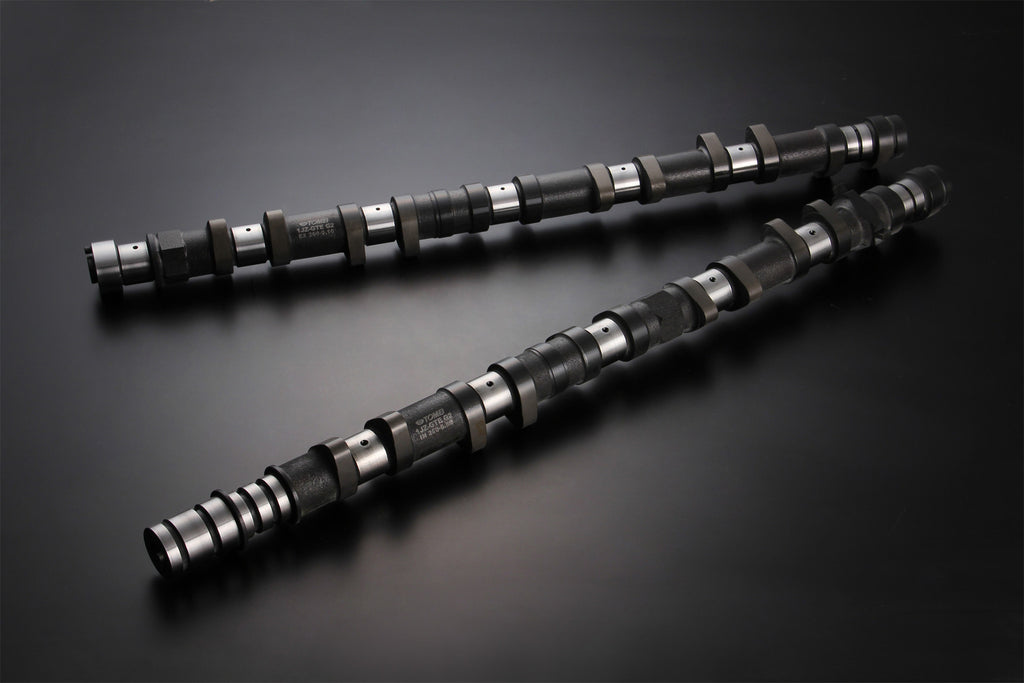

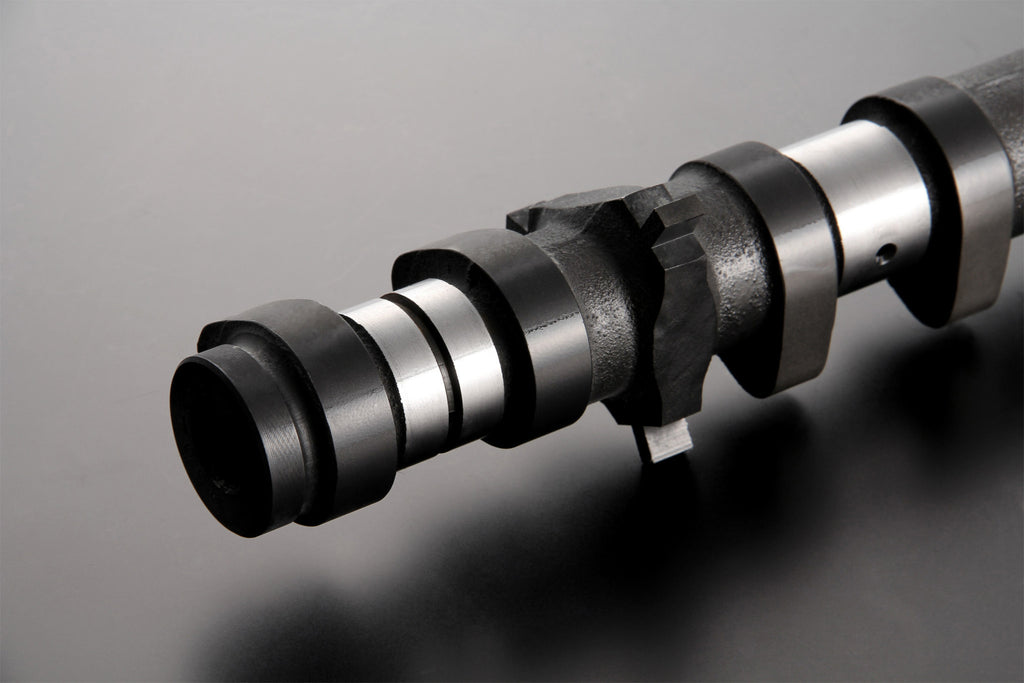

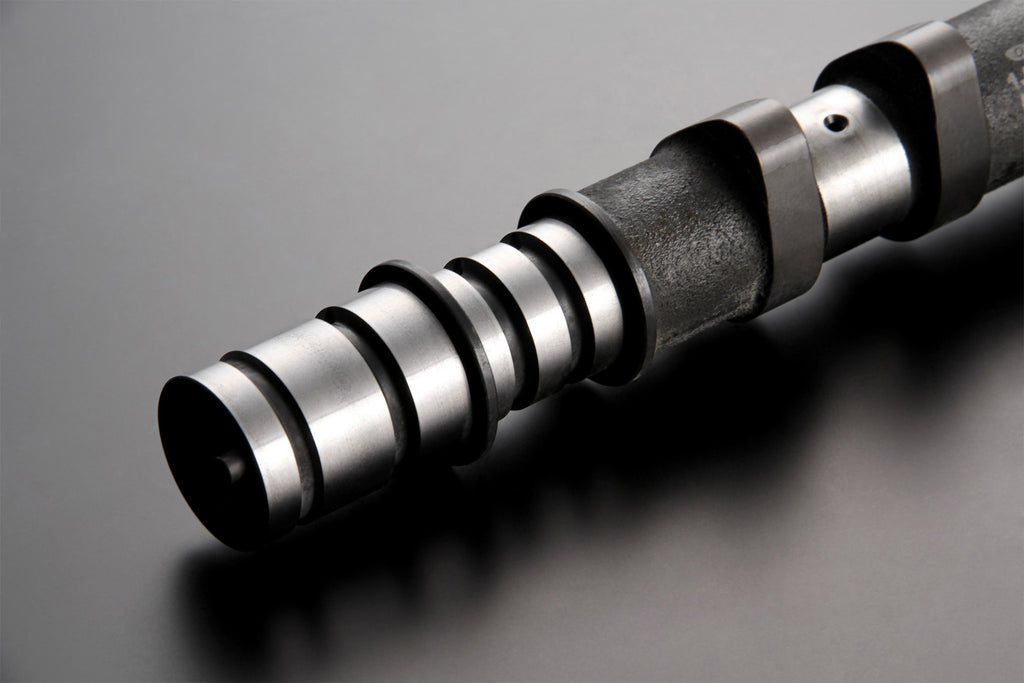

1JZ VVTi PONCAM

$930.00$792.00



High Performance & Outstanding Turbo Response
The long-awaited camshaft, which has been put through several extensive trial & error test phases. Completely analyzed, back to back on the late model 1JZ-GTE engine characteristics. These camshafts now extract even more performance than the stock, throughout the entire range. Excellent pick up from lower rpm, and even greater results at maximum rpm. Now you can experience the full performance potential of the late model 1JZ-GTE.


TYPE
IN/EX
DURATION
(DEG)
MAX
CAM LIFT
(mm)
MAX
VALVE LIFT
(mm)
COLD VALVE
CLEARANCE
(mm)【±0.01】
VALVE TIMING
CENTERLINE
(DEG)
BASE
CIRCLE
(Φ)
PONCAM
IN
250
8.80
8.60
0.20
122
36.0
EX
260
9.10
8.80
0.30
118
36.0
