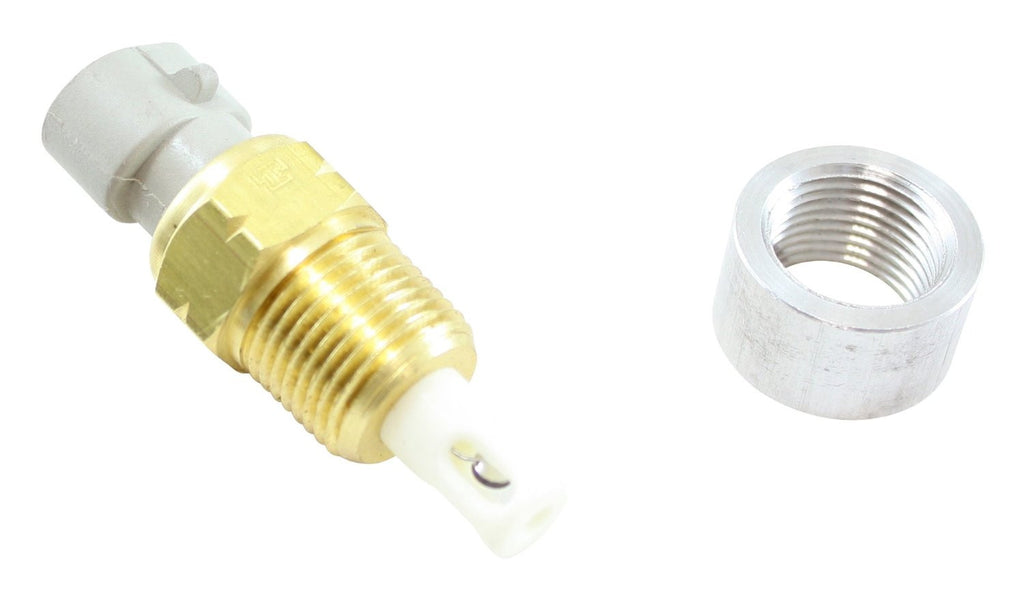

Air Inlet Temperature (AIT) Sensor Kit. 3/8"NPT. Includes: Air Temp Sensor, 3/8"NPT Aluminum Bung, Connector & Pins.
Sensor Performance Specifications:
Accuracy: < 1.5°C / 2.7°F
Operating Temp: -40C to 135C / -40F to 275F
Resistive Range (Ω): See Table
Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
Sensor Body Material: Brass
Thread: 3/8"-18 NPT
Hex Size: 3/4"
Installation Torque: 20Nm / 15 ft-lbs
Weight: 33.3g
Supply Current: 5Vdc
Elec. Termination: Weatherproof connector. Includes mating Connector & Pins
|
